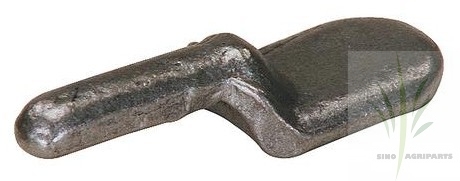

hinges and pins
Item No. :400-116-100-026
Information :
Information :
|
POSITION
|
NOTES
|
A SIZE MM
|
B SIZE MM
|
C SIZE MM
|
D SIZE MM
|
E SIZE MM
|
G SIZE MM
|
BRAND MODEL
|
APPLICATION/USE
|
|
1
|
Piatta micro Micro flat
|
9
|
68
|
24
|
18
|
9
|
|
|
|
|
1
|
Piatta mignon
Mignon flat |
12
|
54
|
30
|
19
|
10
|
|
|
|
|
1
|
Piatta leggerissima
Light flat |
12
|
85
|
30
|
18
|
9
|
|
|
|
|
1
|
Piatta leggera
Light flat |
14
|
92
|
30
|
22
|
11
|
|
|
|
|
1
|
Bombata leggera Light swelled
|
12
|
92
|
30
|
22
|
11
|
|
|
|
|
1
|
Bombata media
Medium swelled |
14
|
110
|
35
|
24
|
12
|
|
|
|
|
1
|
Bombata pesante
Heavy swelled |
16
|
122
|
36
|
27
|
14
|
|
|
|
|
1
|
Viberti corta
Short closure Viberti |
16
|
137
|
33
|
27
|
14
|
|
|
|
|
2
|
|
30
|
30
|
60
|
9
|
8
|
19
|
A.M.A.
|
01568
|
|
2
|
|
40
|
40
|
80
|
12
|
11
|
27
|
A.M.A.
|
00595
00624 00591 |
|
2
|
|
50
|
50
|
100
|
17
|
13
|
30
|
A.M.A.
|
00594
00596 |
|
2
|
|
50
|
55
|
105
|
16
|
15
|
30
|
A.M.A.
|
00597
06116 |
