stabiliser
Item No. :404-102-100-018
Information :
Information :

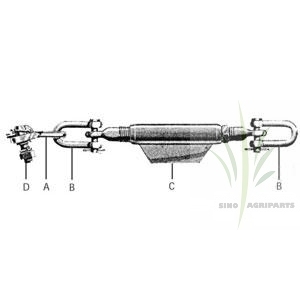

Stabiliser chain Z 700.142
Type
Galvanized
Technical Information
- Switching position of min. 445 mm to max. 536 mm.
- Usable for Deutz 4006, 4506, 5206, 5506, 7506.

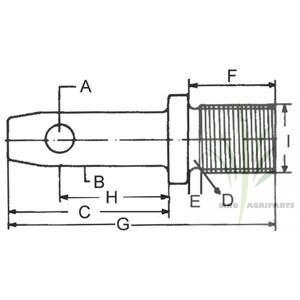

Stabiliser pin
| Unit | Each |
| A (mm) | 12 |
| B (mm) | 22 |
| C (mm) | 28 |
| D (mm) | 16 |
| E (mm) | 51 |
| F (mm) | 76 |
| G (mm) | 107 |
| H (mm) | 7 |
| I | 5/8" UNF |
