hydraulic top link

Item No. :404-102-102-032

 Information :

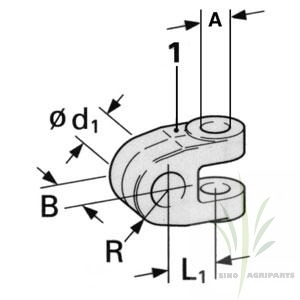

Swivel-end for hydraulic toplink cat. 2 - L=46,5mm
Fork head

            Unit
            Each

            A (mm)
            20,0

            B (mm)
            44,0

            L1 (mm)
            46,5

            R (mm)
            26,0

            d1 (mm)
            22,2

../include/upload/uploadImages/2009-06-24/20090624163051.jpg

previous next

Unit	Each
A (mm)	20,0
B (mm)	44,0
L1 (mm)	46,5
R (mm)	26,0
d1 (mm)	22,2
