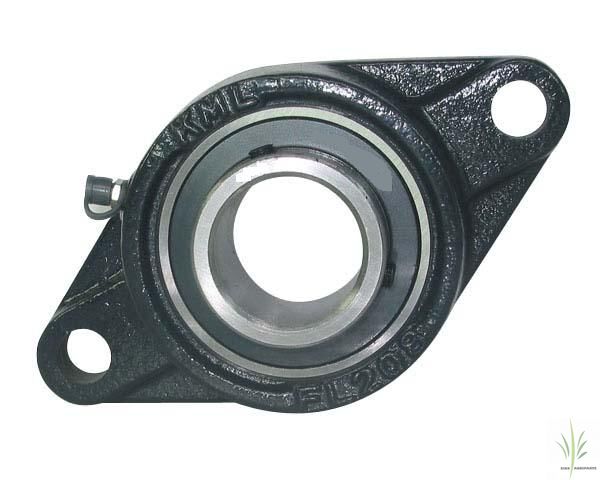

Mounted bearing
Item No. :105-100-109-004
Information :
Information :
|
Shaft Dia |
Boundary dimensions(mm) |
Bolt Size |
Mass |
||||||||||
|
in. |
mm |
a |
e |
i |
g |
l |
s |
b |
z |
Bi |
n |
Kg |
|
|
1/2 |
|
113 |
90 |
15 |
11 |
25.5 |
12 |
60 |
33.3 |
31 |
12.7 |
3/8 |
0.5 |
|
5/8 |
|
113 |
90 |
15 |
11 |
25.5 |
12 |
60 |
33.3 |
31 |
12.7 |
3/8 |
0.5 |
|
|
20 |
113 |
90 |
15 |
11 |
25.5 |
12 |
60 |
33.3 |
31 |
12.7 |
M10 |
0.5 |
|
3/4 |
|
113 |
90 |
15 |
11 |
25.5 |
12 |
60 |
33.3 |
31 |
12.7 |
3/8 |
0.5 |
|
|
25 |
130 |
99 |
16 |
13 |
27 |
16 |
68 |
35.7 |
34 |
14.3 |
M14 |
0.6 |
|
7/8 |
|
130 |
99 |
16 |
13 |
27 |
16 |
68 |
35.7 |
34 |
14.3 |
1/2 |
0.6 |
|
15/16 |
|
130 |
99 |
16 |
13 |
27 |
16 |
68 |
35.7 |
34 |
14.3 |
1/2 |
0.6 |
|
1 |
|
130 |
99 |
16 |
13 |
27 |
16 |
68 |
35.7 |
34 |
14.3 |
1/2 |
0.6 |
|
|
30 |
148 |
117 |
18 |
13 |
31 |
16 |
80 |
40.2 |
38.1 |
15.9 |
M14 |
0.9 |
|
1-1/16 |
|
148 |
117 |
18 |
13 |
31 |
16 |
80 |
40.2 |
38.1 |
15.9 |
1/2 |
0.9 |
|
1-1/8 |
|
148 |
117 |
18 |
13 |
31 |
16 |
80 |
40.2 |
38.1 |
15.9 |
1/2 |
0.9 |
