fuel hose
Item No. :402-103-112-030
Information :
Information :

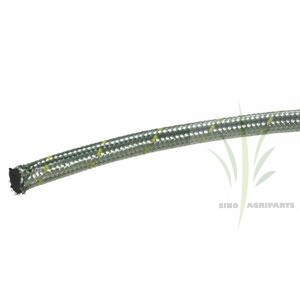

Fuel hose RM with steel reinforcement
Designed to
fuel and fuel mixtures (benzyl contents to max. 50 %).
Norm
DIN 73379C
Hose material outside
galvanized thread braiding with 3 orange lines on braiding
Ferrule type
FB
Hose material inside
NBR
Temperature range (°C)
- motor oil +80°C
- hydraulic liquid on a mineral- or glycol basic +80°C
- diesel +80°C
- fuel oil +70°C
- vegetable fat +80°C
- (oil-bearing) air +80°C
- refrigerant (glycol, glysatine, etc.) +80°C
- water +80°C
- cold resistant till -35°C
Technical Information
oil- and fuel resistant
Fuel hose 13mm
| Unit | m |
| Qty. Rounding | 0.01 |
| Working pressure (bar) | 15 |
| Bending radius (mm) | 45 |
| Burst pressure (bar) | 50 |
| Internal Ø (inch) | 1/2" |
| Internal Ø (mm) | 11 |
| NW | 13 |
| Use ferrule | FB 19 |
| Thickness of shell | 3,35 |
| Roll length (m) | 10 |
| Weight (g/m) | 280 |
| Outside Ø (mm) | 17,7 |
