camera system

Technical Information

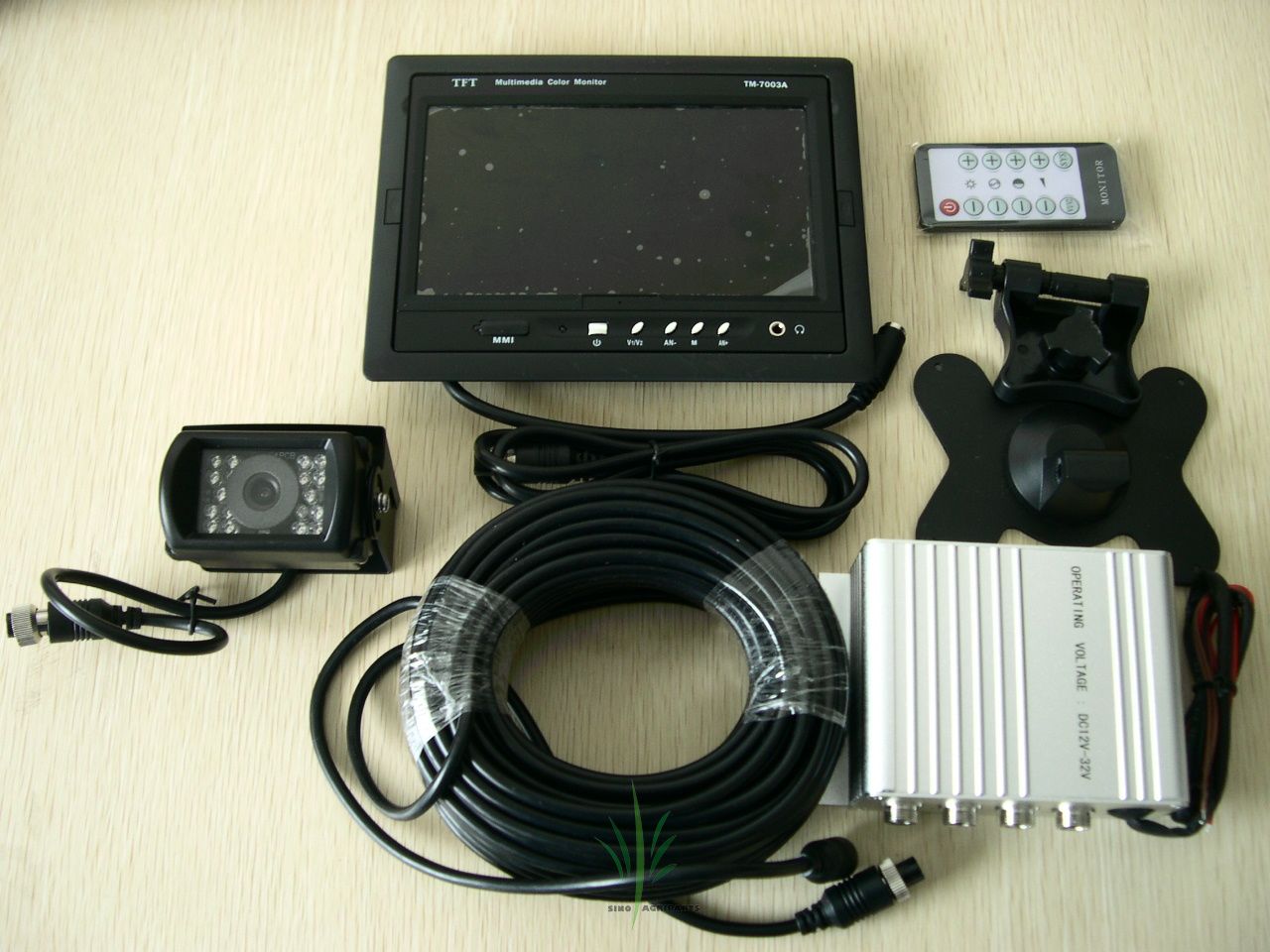

Application examples are back-up cameras on trucks and earth moving machines, procedure monitoring in agricultural machines, etc. The system is provided with a large 7" flat screen colour monitor with sound and a camera equipped with infrared LED light support for situations with low ambient light.

Technical Specifications of the Set:
- Multi-voltage (8-32 V DC). Power consumption: < 10W
- Ports for up to 2 cameras (or 4 cameras)
- Priority switch (for automatic channel choice when activating the reverse gear)
- Automatic channel switching possible on 2 channels; interval time adjustable from 2 to 20 sec.
- 7" TFT-LCD colour monitor (189 x 122 x 24 mm)
- LCD screen temperature range: -10° up to + 50°C
- Mirror function on monitor input signal
- Wireless monitor function remote control

Technical Specifications of the Camera:
- Camera with Sony CCD and stainless steel hood and bracket
- Minimal illuminance (without LED): 0.5 lux
- Angular aperture: 92° (f=3.6 mm)
- Camera temperature range: -30° up to + 50°C (with lens heating)
- The camera is equipped with a 1 meter cable with a waterproof (IP67) connector
- Camera connection cable
