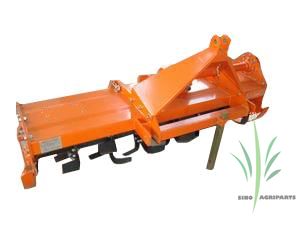

rotary tiller
Item No. :208-110-100-001
Information :
Information :
The gearbox of it adopt the newest compose by gear.Its function is good and noise is lower.Its efficiency of soil crushing is over 95%.It's easy to repair and consumes little oil.It's the only one standard complete sets rotary tillers of middle or small horsepower tractor in the county
|
model
|
Unit
|
1SA 150
|
1SA180
|
1SA200
|
|
|
Drive power
|
kw
|
22.1-29.4
|
36.8-44.1
|
44.1-51.4
|
|
|
Tillage withe
|
mm
|
1500
|
1800
|
2000
|
|
|
Tillage depth
|
mm
|
Dry field: 120-140
Paddy field: 120-160
|
|||
|
Blade type
|
mm
|
Blade disc modality,rotor radius R=230(special purpose)
|
|||
|
Blade amounts
|
Piece
|
36
|
42
|
48
|
|
|
Rotation speed of blade shaft
|
r/min rpm
|
205
|
205
|
205
|
|
|
PTO rotation speed: 540
|
|||||
|
productivity
|
Primary
|
hm2/h
|
0.25-0.35
|
0.29-0.41
|
0.35-0.48
|
|
Secondary
|
hm2/h
|
0.35-0.45
|
0.39-0.51
|
0.45-0.68
|
|
|
Oil consume
|
Kg/ hm2
|
Primary: 10-12
Secondary: 6-10
|
|||
|
Joint manner
|
|
Standard three-point linkage
|
|||
|
Overall dimensions
|
mm
|
1700*800*700
|
2000*800*700
|
2200*800*760
|
|
|
Total quality
|
kg
|
350
|
420
|
490
|
|
|
Quality of great oil
|
kg
|
gearbox≈2.5
side transmission box≈4
|
|||
Packaging锛歁etal box or wooden box,according to customer's requirment!
