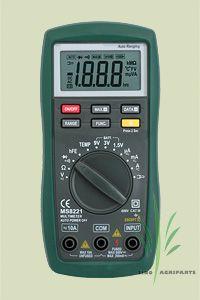

Multimeter

• Designed to international safety standard IEC 1010-1 CAT III 600V
• Secondary injection molding case
• Auto range
• Data hold
• Maximum value measurement
• Back light
• Auto power off
• Display: 1999 counts, digit is 16mm high
• DC voltage: 200m/2/20/200/600V±0.7%
• AC voltage: 200m/2/20/200/600V±0.8%
• DC current: 200µ/2000µ/20m/200mA±1.2%, 2/10A±2.0%
• AC current: 200µ/2000µ/20m/200mA±1.5%, 2/10A±3.0%
• DC current (with clamp, optional): 200/2000A(0.1mV/0.1A)±1.2%
• AC current (with clamp, optional): 200/2000A(0.1mV/0.1A)±1.5%
• Resistance: 200/2k/20k/200k/2MΩ±1.2%, 20MΩ±2.0%
• Temperature: -20°C ~ 1000°C±3.0%, 0°F ~ 1800°F±3.0%
• Battery test: 1.5V (test current approx. 60mA)
3V (test current approx. 30mA)
9V (test current approx. 12mA)
• Continuity test
• Diode test
• Transistor hFE test
• Power: 1.5V (AAA) x 3
• Size: 158mm x 74mm x 31mm
• Weight: Approx. 220g (including battery)
