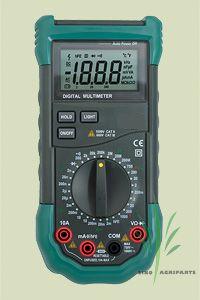

Multimeter

Item No. :101-102-101-043

Information :

• Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V

• SMT application

• Display: 1999 counts

• Automatic indication of functions and symbols

• DC voltage: 200m/2V/20V/200V±0.5%, 1000V±0.8%

• AC voltage: 2V/20V/200V±0.8%, 750V±1.2%

• DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%

• AC current: 2mA±1.0%, 200mA±1.8%, 10A±3.0%

• Resistance: 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%

• Capacitance: 2n/20n/200n/2µ/20µF±4.0%

• hFE: 1 ~ 1000

• Diode test

• Continuity test

• Auto power off

• Resettable fuse inside

• Data hold

• Back light

• Power: 6F22(9V)x1

• Size: 195mm x 92mm x 55mm

• Weight: Approx. 380g (including battery)
