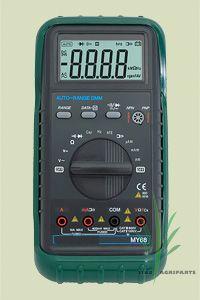

Multimeter

Item No. :101-102-101-048

Information :

• Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V

• SMT application

• Display: 3999 counts

• DC voltage: 400m/4/40/400V±0.7%, 1000V±0.8%

• AC voltage: 400mV±3.0%, 4/40/400V±0.8%, 750V±1.0%

• DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0%

• AC current: 400μ/4000μ/40m/400mA±1.5%, 10A±3.0%

• DC current (with clamp MS3302): 40A/400A(0.1A/1mV)±0.8%

• AC current (with clamp MS3302): 40A/400A(0.1A/1mV)±1.0%

• Resistance: 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0%

• Capacitance: 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0%

• Frequency: 10/100/1000/10k/200kHz±2.0%

• hFE: 1 ~ 1000

• Diode test

• Continuity test

• Auto power off

• Data hold

• Power: 6F22 (9V) x 1

• Size: 91mm x 189mm x 31.5mm

• Weight: Approx. 310g (including battery)
