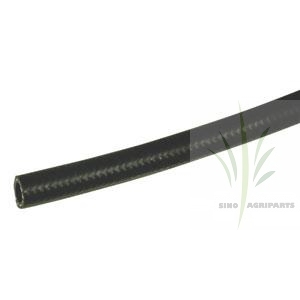

fuel hose
Item No. :402-103-112-033
Information :
Information :
Norm
DIN 0073379 and SAE 30 R9
Hose material outside
ECO
Number of plies
1
Ferrule type
FB
Hose material inside
FPM
Temperature range (°C)
-30°C / +110°C
Technical Information
-fuel hose FPM/ECO for all commercial fuels, including bio diesel, turnipseedoil and alcohol fuel
-resistant to ozone, oil and light
Fuel hose 3/8"
| Unit | m |
| Qty. Rounding | 0.01 |
| Bending radius (mm) | 90 |
| Burst pressure (bar) | 35 |
| Internal Ø (mm) | 9,3 |
| Working pressure (bar) | 6 |
| Thickness of shell | 3 |
| Internal Ø (inch) | 3/8" |
| Roll length (m) | 15 |
| NW | 10 |
| Weight (g/m) | 204 |
| Outside Ø (mm) | 15,3 |
