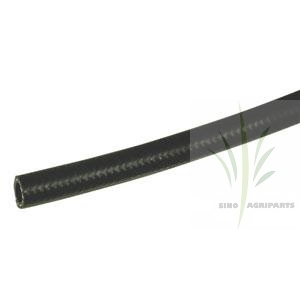

fuel hose
Item No. :402-103-112-034
Information :
Information :
Norm
DIN 0073379 and SAE 30 R9
Hose material outside
ECO
Number of plies
1
Ferrule type
FB
Hose material inside
FPM
Temperature range (°C)
-30°C / +110°C
Technical Information
-fuel hose FPM/ECO for all commercial fuels, including bio diesel, turnipseedoil and alcohol fuel
-resistant to ozone, oil and light
Fuel hose 1/2"
| Unit | m |
| Qty. Rounding | 0.01 |
| Bending radius (mm) | 100 |
| Burst pressure (bar) | 35 |
| Internal Ø (mm) | 11,3 |
| Working pressure (bar) | 6 |
| Thickness of shell | 3,35 |
| Internal Ø (inch) | 1/2" |
| Roll length (m) | 10 |
| NW | 12 |
| Weight (g/m) | 254 |
| Outside Ø (mm) | 18 |
