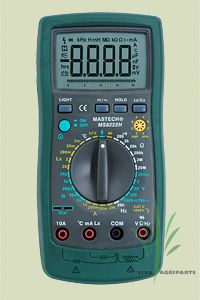

Multimeter

• Auto power off
• Data hold
• Back light
• Display 1999 counts and 40 segments bar graph
• DC Voltage: 200mV / 2V / 20V / 200V ±0.5%, 1000V ±0.8%
• AC Voltage: 200mV / 2V / 20V / 200V ±1.0%, 700V ±1.2%
• DC Current: 2mA / 20mA ±1.0%, 200mA ±1.5%, 10A ±2.0%
• AC Current: 2mA / 20mA ±1.2%, 200mA ±2.0%, 10A ±3.0%
• Resistance: 200 Ω / 2k Ω / 20k Ω / 200k Ω / 2M Ω / 20M Ω ±1.0%
• Capacitance: 2nF / 20nF / 200nF / 2 μ F / 20 μ F ±4.0%
• Inductancy: 2mH / 20mH / 200mH / 20H ±3.0%
• Freqency: 20kHz ±1.5%
• Continuity test
• TTL Logic test
• Transistor hFE test
• Diode test
