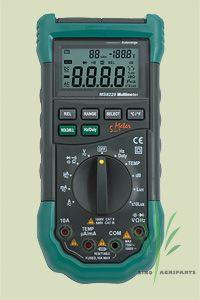

Multimeter
Information :
• Designed to international safety standard IEC61010-1 CAT II 1000V/CAT III 600V
• Sound & light warning for the incorrect inserting the input plug
• Auto range/Manual range
• Data hold
• Maximum value measurement
• Auto power off
• Back light
• Display: 3999 counts
• DC voltage: 400m/4/40/400/1000V±0.7%
• AC voltage: 400m/4/40/400V±0.8%, 750V±1.0%
• DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0%
• AC current: 400μ/4000μ/40m/400mA ±1.5%, 10A ±3.0%
• Resistance: 400/4k/40k/400k/4M/40MΩ±1.0%
• Capacitance: 50n/500n/5μ/50μ/200μF±3.0%
• Frequency: 10/100/1k/10k/100kHz±2.0%
• Duty cycle: 0.1% ~ 99.9%±3.0%
• Temperature (thermocouple): -20°C ~ 1000°C±3.0% or ±2°C, 0°F ~ 1800°F ±3.0% or ±4°F
• Temperature (NTC): 0°C ~ 40°C±2°C锛?32°F ~104°F±4°F
• HUMIDITY锛?20% ~ 95%RH ±5.0%RH
• Light: 4000Lux/40000Lux±5.0%
• Sound level: 40 ~ 100dB±5dB
• Continuity checking with buzzer
• Diode test
• Power: 1.5V (AAA) X 3
• Size: 195 X 92 X 55mm
• Weight: Approx. 400g (including battery)
