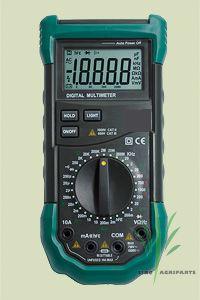

Multimeter

Item No. :101-102-101-045

Information :

• Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V

• Sound & light warning for the incorrect inserting the input plug

• SMT application

• Display: 19999 counts

• DC voltage: 200mV±0.05%, 2/20/200V±0.1%, 1000V±0.15%

• AC voltage: 2V±0.5%, 20/200V±0.6%, 750V±0.8%

• DC current: 2mA±0.5%, 200mA±0.8%, 10A±2.0%

• AC current: 2mA±0.8%, 200mA±1.2%, 10A±2.5%

• Resistance: 200Ω±0.5%, 2k/20k/200k/2MΩ±0.3%, 20MΩ±0.5%, 200MΩ±5%

• Capacitance: 20nF/200n/2μ/20μ/200μF±4.0%

• Frequency: 20kHz±1.5%

• hFE: 1~1000

• Diode test

• Continuity test

• Auto power off

• Resettable fuse inside

• Data hold

• Back light

• Power: 6F22(9V)x1

• Size: 195mm x 92mm x 55mm

• Weight: Approx. 380g(including battery)
