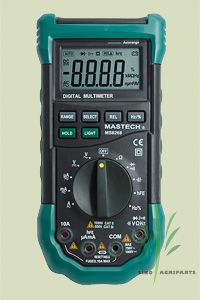

Multimeter
Information :
• Conform to the IEC1010-1 standard CAT III 600V and CAT II 1000V
• Sound & light warning for the incorrect inserting the input plug
• SMT application
• Display: 3999 counts
• DC voltage: 400m/4/40/400V±0.7%, 1000V±0.8%
• AC voltage: 400mV±3.0%, 4/40/400V±0.8%, 750V±1.0%
• DC current: 400μ/4000μ/40m/400mA±1.2%, 10A±2.0%
• AC current: 400μ/4000μ/40m/400mA±1.5%, 10A±3.0%
• Resistance: 400/4k/40k/400k/4MΩ±1.2%, 40MΩ±2.0%
• Capacitance: 4nF±5.0%, 40n/400n/4μ/40μ/200μF±3.0%
• Frequency: 10/100/1000/10k/200kHz±2.0%
• hFE: 1~1000
• Diode test
• Continuity test
• Duty cycle test
• Relative measurement
• Auto power off
• Resettable fuse inside
• Data hold
• Back light
• Power: AAA (1.5V) x 3
• Size: 195mm x 92mm x 55mm
• Weight: Approx. 380g(including battery)
